Page 116 - Emeraude 2.60 Tutorial

Emeraude v2.60 – Doc v2.60.01 - © KAPPA 1988-2010 Guided Interpretation #5 • B05 - 28/32

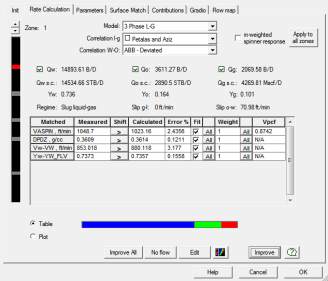

Fig. B05.33 • Zone Rates
 Validate the Zone Rates results and generate the schematic logs down to 9100 ft,
Fig. B05.34.

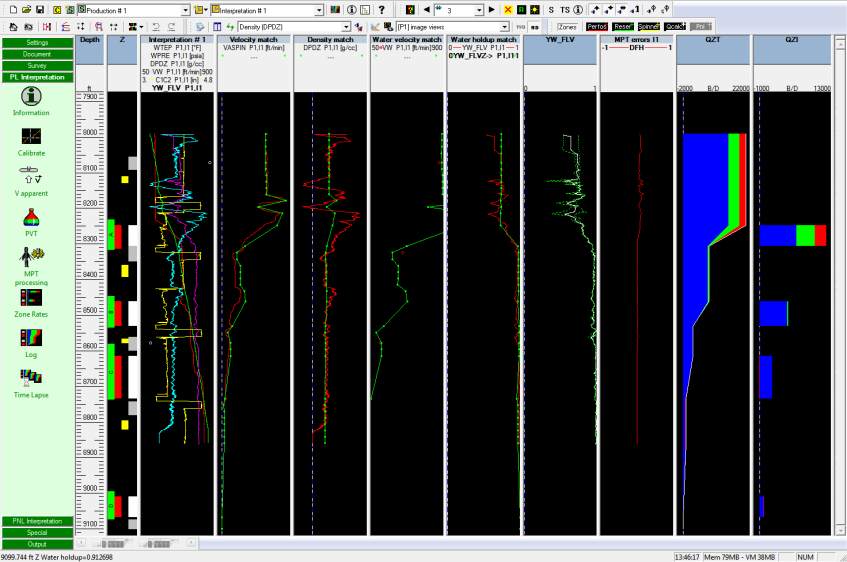

Fig. B05.34 • Schematic generated
