B08.2.4 • FSI electrical probe view
Invoke templates with
.
Call FSI Electrical Probe View template (keep all defaults).

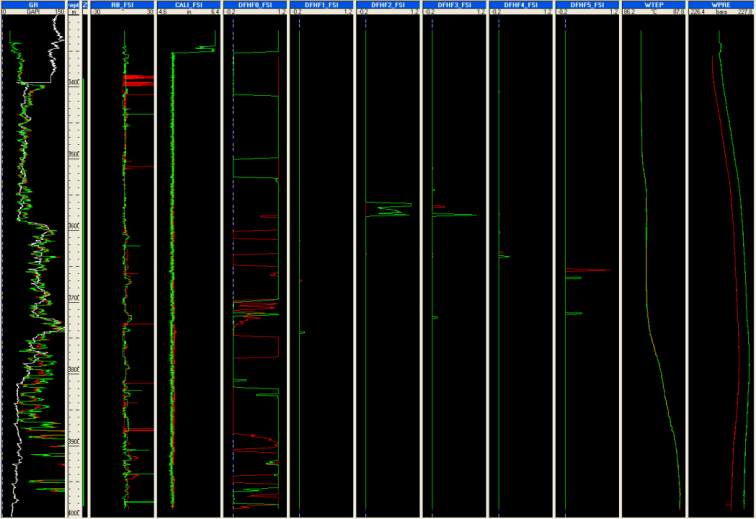

There seems to be water traces on DFHF0. Some ‘blips’ on the others.
Fig. B08.14 • Electrical probes display
The surface rates indicate that there is almost no water produced and the electrical probes are
seeing only little water: we will then not consider water when analyzing the well, by ignoring the
electrical probes in the calculations.
B08.2.5 • FSI optical probe view
Invoke templates with
.
Call FSI Optical Probe View template (keep all defaults).
As shown next, it seems that GHHF1 is not responding and therefore it will be ignored in the
processing. The other probes were giving erratic measures. They have been cleaned using ‘Hide
parts’.
