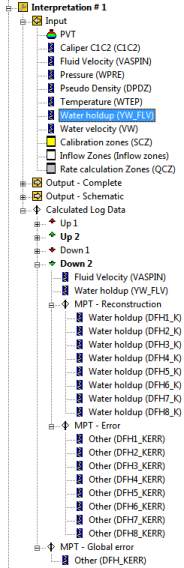

Fig. B05.30 • Browser tree.
----------------------------------------------
Interpretation inputs, among which the
Water holdup obtained by the lateral
average of passes Up 2 and Down 2
YW_FLV data
----------------------------------------------
----------------------------------------------
Water holdup (YW_FLV) obtained from
the independent processing of Down 2
----------------------------------------------
Reconstructed probe channels
----------------------------------------------
Errors channels (relative errors between
the raw and the reconstructed channels)
----------------------------------------------
Global error on the reconstructed DFHx
probes
