B08.2.2 • PFCS holdups and bubble counts
 Invoke templates with .
 Call PFCS Holdup and Bubble Count template (keep all defaults).
The PFCS probes are all very suspiciously flat: we will not consider this tool when interpreting the
data.

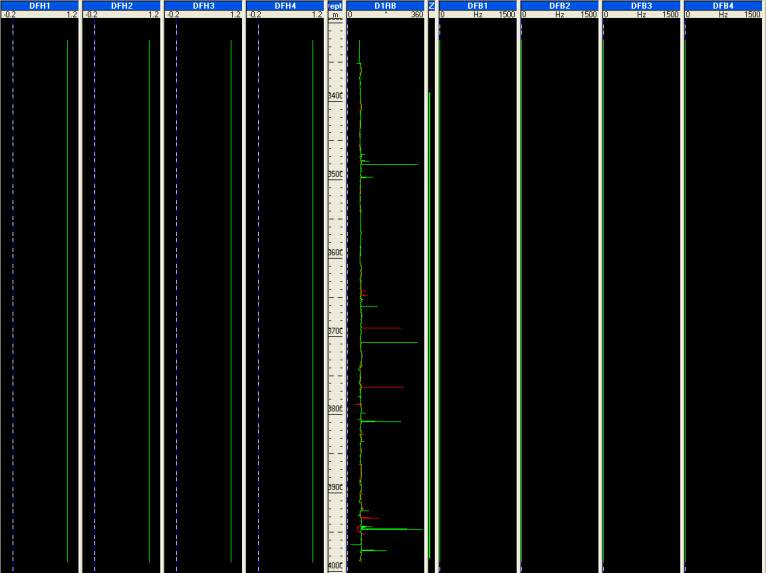

Fig. B08.11 • PFCS and bubble counts display
B08.2.3 • FSI spinner view
 Invoke templates with .
 Call FSI Spinner View template (keep all defaults).
The following picture shows the original data of the FSI spinners. The hidden parts of SPIF0_FSI
appear in gray. As it was looking suspicious in Up1 and Up2, it was cleaned using ‘Hide parts’ on
some sections. SPIF2 is dead and will then be ignored in the calculations.
