Guided Interpretation #9 • B09 - 7/22
Fig. B09.7 • Data scale dialog

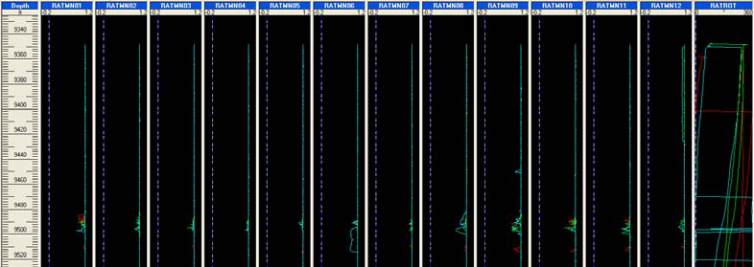

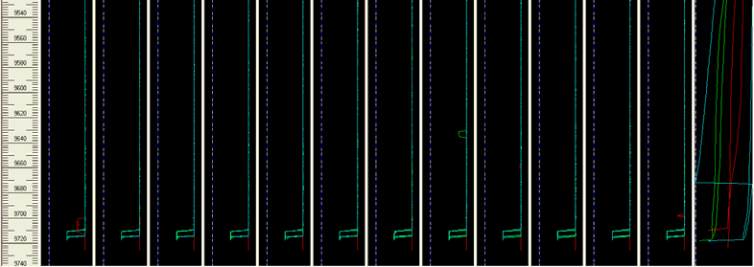

Then we get the following screen showing all the RAT probes and the RAT bearing.
Fig. B09.8 • RAT probes display
The data looks fairly consistent, all probes exhibiting the same behavior with little water at the
bottom and a very small water entry seen in the middle (seen also with the CAT).
