B09.2.4 • SAT Data
¾
From the display toolbar, call the template button
.
¾
Among the Sondex Templates, Full Layouts select ’SAT Spinners’.
¾
Add the LSPD view and Update the snapshot.

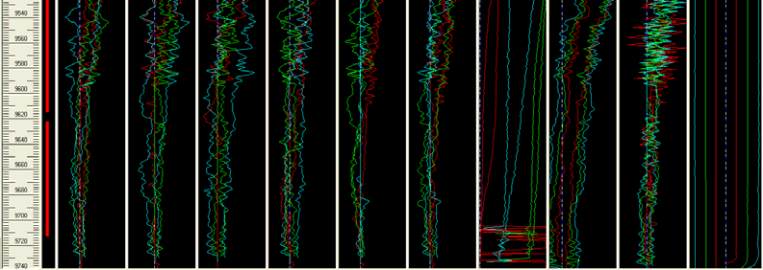

Fig. B09.10 • Spinners display
From the SAT spinner data, it is not possible to do proper individual spinner calibrations. For all
spinners, a threshold of about 30 ft/min and a slope of 0.08 rps/ft/min will be used. This will be
done by using a SAT constant calibration (no need for calibration zones).
We will also calibrate the ILS and CFB spinners. For this, we need to create a new PL
interpretation and define calibration zones.
¾
Create a new PL Interpretation. Accept default name.
¾
In the ‘Interpretation Settings’ window, ‘Calibration’ tab, set the spinner calibration to
‘SAT - Constant’.
¾
Click on the button next to above choice to access the SAT calibration:
¾
Enter the values of 0.08 rps/ft/min and 30 ft/min.
¾
Tick CFB and ILS and close the window with OK.
¾
Enter two spinner calibration zones [9405 – 9419 ft] and [9640 – 9670 ft].
¾
Go to ‘Calibrate’. Select CFB and for the bottom zone, enter thresholds 3.5 ft/min and -
3.5 ft/min.
¾
Select ILS and for the bottom zone, do not use point for pass down 3 and recompute
positive line.
