Page 23 - Emeraude 2.60 Tutorial
Basic HTML Version
Emeraude v2.60 – Doc v2.60.01 - © KAPPA 1988-2010
Guided Interpretation #1
•
B01 - 21/38
Reference pressure, temperature, densities (and capacitance) did not need to be defined at
this point. More complex processing may be required than that offered by the ‘Define’ dialog
above. Additional features are available in the data browser and are described in the Guided
session #2.

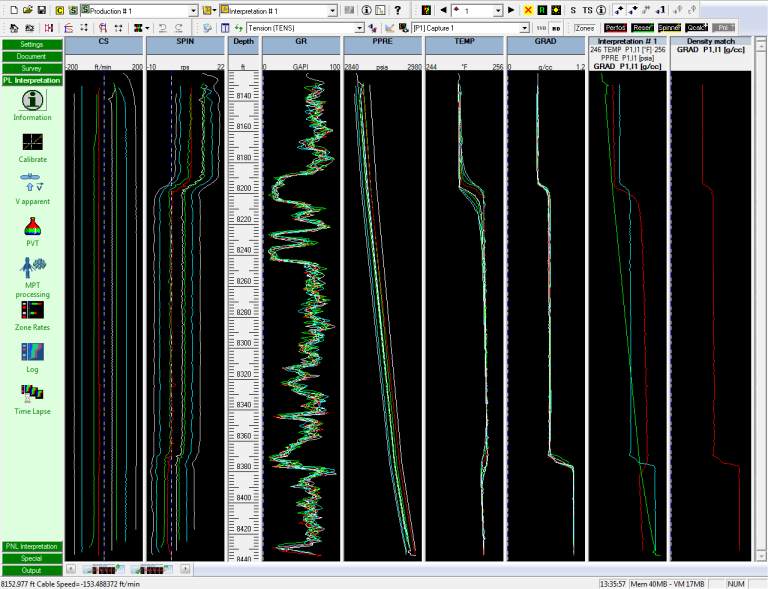

Fig. B01.24 • Interpretation main screen
Fig. B01.24 illustrates the screen after the definition of the reference channels. The rightmost
track, called ‘Density match’ view will be used to overlay the measured and simulated density
resulting from the diagnostic at a later stage of the interpretation.

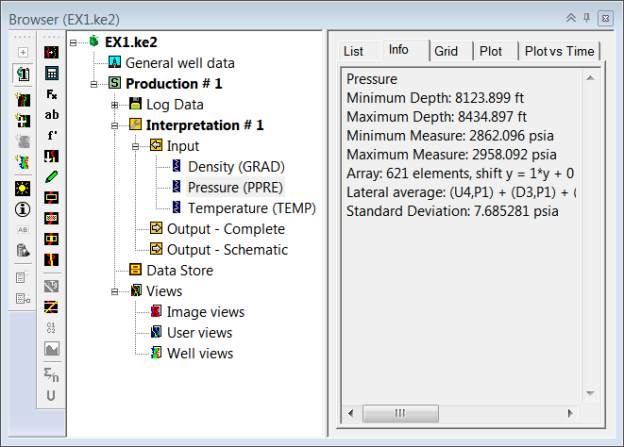

Fig. B01.25 • Info page of the data browser
