Guided Interpretation #2
•
B02 - 6/22
Click on ‘Create a new Survey’ icon
in front of the survey drop list of the main toolbar
to create the second survey. By default the name ‘Survey #2’ is proposed.
Edit the dialog values to read:
Name:
Shut-in #1
Short name:
S1
Hit OK to confirm.
Select ‘Load’ to import the logical files from 7 to 12 from B02plt.lis.
File index
Survey
Pass type
Pass number
7
Shut-in
Down
1
8
Shut-in
Up
1
9
Shut-in
Down
2
10
Shut-in
Up
2
11
Shut-in
Down
3
12
Shut-in
Up
3
In the Shut-In #1 survey, hide the ID plot, tile the plots and rescale the Gamma Ray plot
resetting the ‘Horizontal Scale’ using the ‘Current depth window’ option.

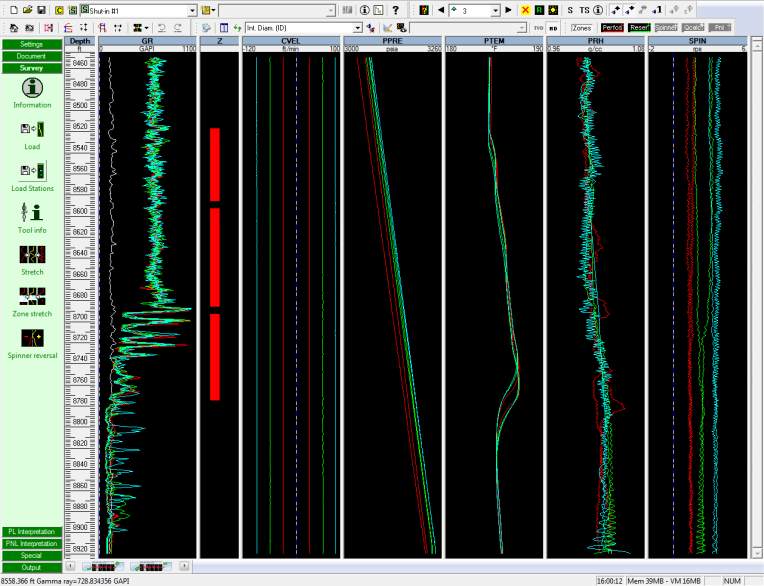

Fig. B02.6 • Shut-in data loaded: ID hidden
At any time, the displayed survey (or active survey) is indicated in a drop list on the main
program toolbar. The list is also used to change the active survey.
