 Click in the flowmeter view above the first data point. A dialog appears where the reversal
depth can be changed, as well as the reversal direction (i.e. above or below the selected
depth).
Fig. B02.8 • Spinner reversal dialog
 Accept the current settings. The flowmeter channel for Up 1 is now displayed with negative
values.
Note: The ‘Properties’ option of the pass toolbar accesses a page where reversal depths
can be viewed and edited.
 Revert the remaining Up passes, 2, and 3:
 activate the pass in the pass drop list.
 click on the ‘Spinner reversal’ option.
 click in the SPIN view above the first data point: accept values in the subsequent dialog.
The horizontal scale of the Flowmeter view is not reset automatically when inverting the
spinner response.
 Select to reset the horizontal scale as needed.

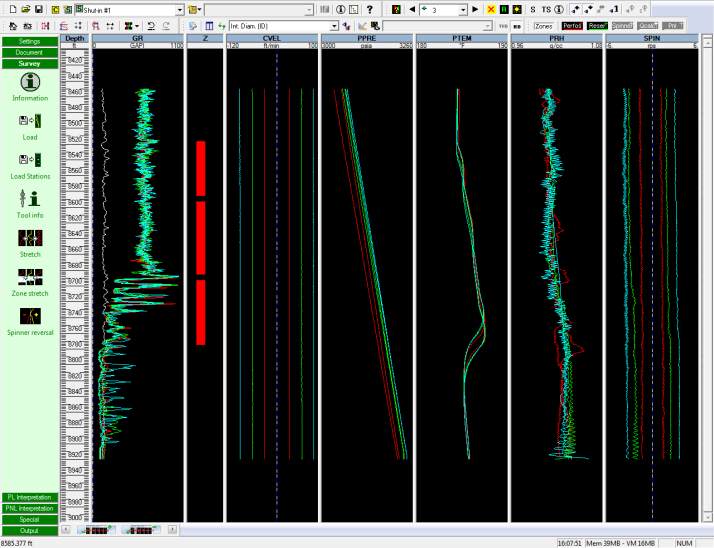

Fig. B02.9 • Shut-in spinners reverted
