Guided Interpretation #2
•
B02 - 20/22

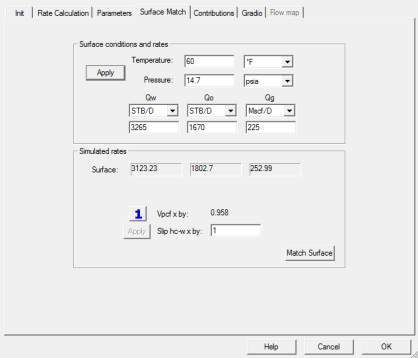

Fig. B02.27 • After Match Surface
Go back to the ‘Rate Calculation’ tab, move to the bottom zone and set it as ‘NoFlow’.
Validate with OK and generate the schematic and complete logs for this interpretation,
Fig. B02.28. You can hide the user view where the densities were compared.

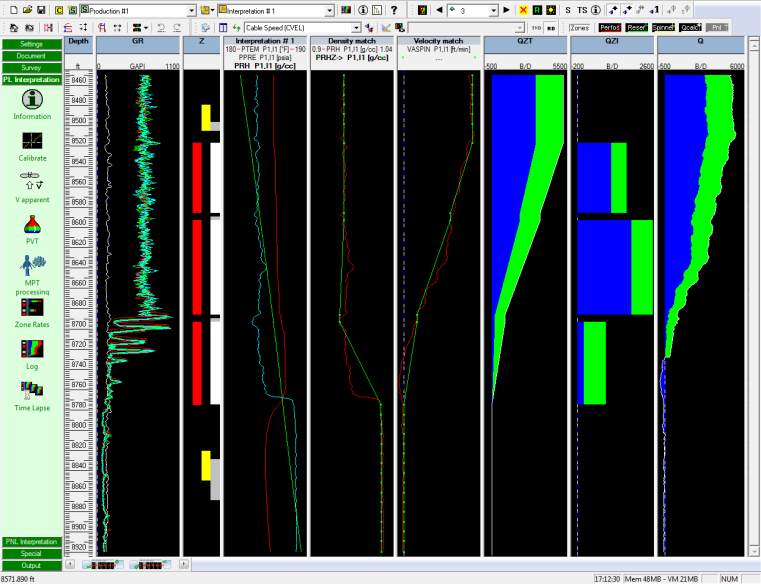

Fig. B02.28 • Logs generated
