B03 – Guided Interpretation #3
This session assumes that you have followed the first two guided sessions, or that you are
familiar with Emeraude. The purpose of this third example is to illustrate the use of the
the ‘Global Regression’ and the two different interpretation methods offered in the software:
‘Zoned’ and ‘Continuous’.
The data for this example is from a deviated well with three phase flow. Three passes have
been run and the toolstring was designed to measure, among others, the water and gas phase
holdups.
B03.1 • Opening B03
Start Emeraude and Open the file B03.ke2 located in the Emeraude Examples directory.

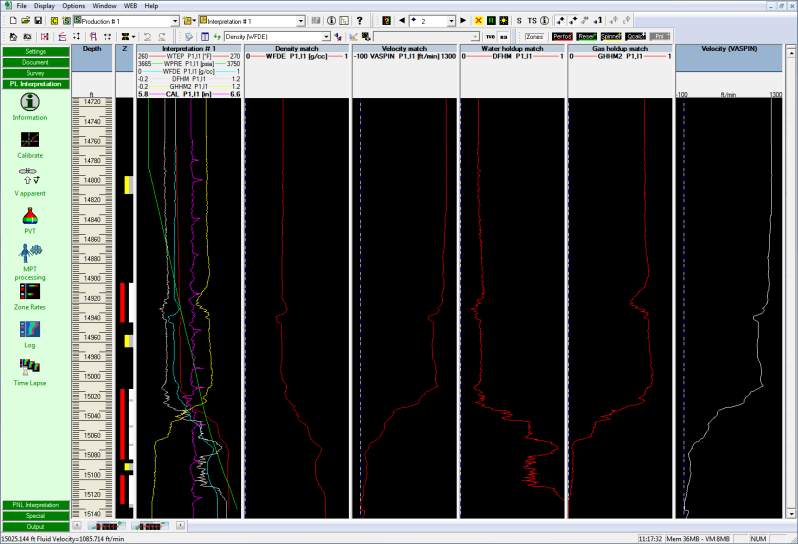

Fig. B03.1 • B03 file
In addition to the Z track, the screen shows the interpretation track with the reference
channels (density, temperature, pressure and holdups), and the match tracks.
In the browser, the General Well Data is complete with all relevant information entered. The
document has one survey called Production #1, and the surface rates are given.
