Fig. B02.30 • Interactive editing over
Delete Parts and Fill Gaps
 From the browser, activate the SPIN channel in pass Up3, highlight it.
 Right-click in the Browser and choose ‘Edit / create channel’ and ‘Delete Parts’, (or ).
 On the log, define a windows, by dragging from 8550 ft and 8650 ft.
 In the Delete parts dialog, validate with OK
Data in this range have disappeared in pass Up3. This will leave a gap in the data that needs
to be filled in.
 Select Edit - ‘Fill Gaps’ in the Browser, or . ‘Fill gap inferior to…’, say 300 ft. The
resulting SPIN plot is shown on Fig. B02.31.
Note: The ‘Delete Parts’ options were presented in graphic mode. The same options may be
performed in grid mode, by selecting rows in the Grid page of the data browser.

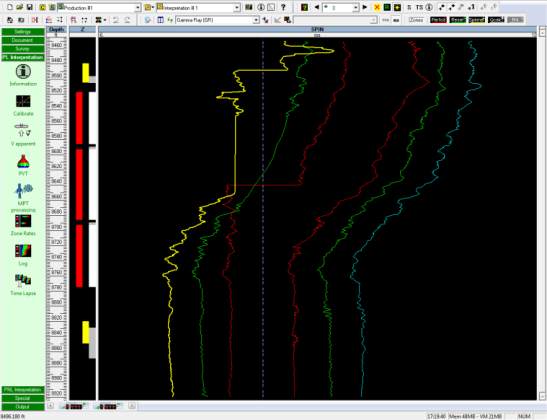

Fig. B02.31 • Up3 Flowmeter edited with ‘Delete parts’ and ‘Fill gaps’
This concludes Guided Interpretation#2.
