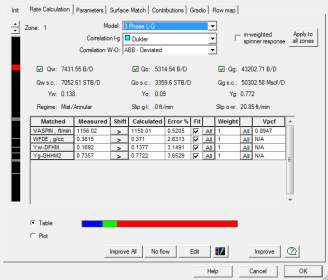

Fig. B03.3 • ‘Zone Rates’ Calculation; top zone
 Move to the bottom zone, set it to ‘No Flow’.
 Validate the Zone Rates results with OK.
 Generate both schematic and complete logs, keeping the default depth increments for both
the complete and the schematic logs (the default depth increment value for the schematic
log is based on 50 points over the default log interval).
 Reset the horizontal scales with .

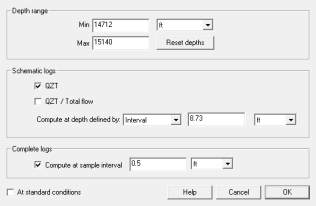

Fig. B03.4 • Rate log settings
