Guided Interpretation #4
•
B04 - 1/14
B04 – Guided Interpretation #4
This example illustrates the following options:
-
Apparent Downflow
-
SIP (selective inflow performance)
-
Temperature
-
Standing water column
B04.1 • Example data
Open the file B04.ke2 located in the Examples directory, Fig. B04.1.

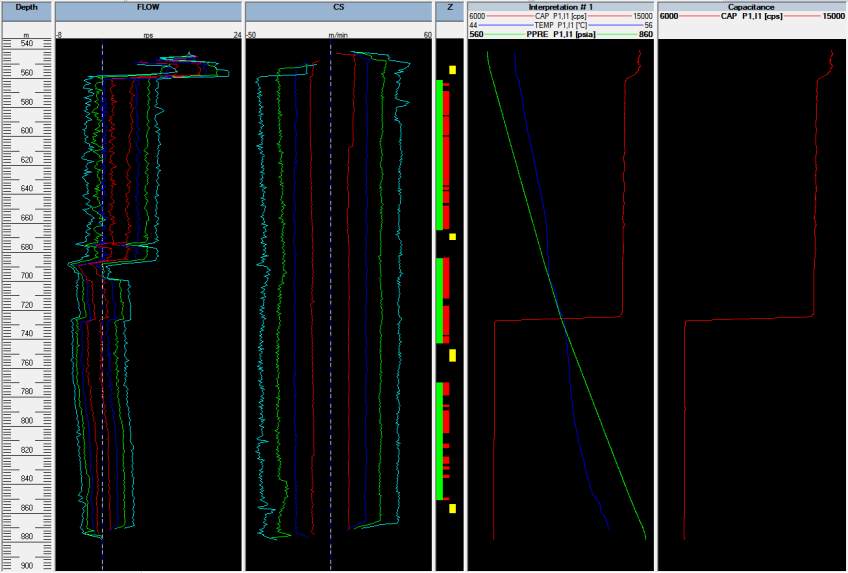

Fig. B04.1 • Main interpretation screen
This file contains 4 different surveys/interpretations. There are 1 shut-in and 3 productions.
The tool string includes the following: Spinner, Gradio, and Capacitance. The gradio failed in
some surveys: Shut-in #1, Production #1, Production #3. All surveys have been interpreted
except for Production #1 which is considered in the sections below. The well is around 50°
deviated. The tubing shoe is set at 725 meters, after which there is 9 5/8 casing. There are 3
reservoirs, the uppermost producing through a sliding sleeve around 560 m. There is no water
production at surface.
