Activating the Temperature
calculation
 Go to the ‘Temperature’ tab.
 Click ‘Simulate Temperature’
and ‘Match temperature’.
 Select ‘Segmented model’.
 Answer yes ‘Convert the HLC’
(Heat Loss Coefficient).
 Enter delta P (Joule Thomson)
= 30 psia.
The geothermal profile could be
defined by a point and a gradient,
but this will be done interactively
instead.
 Validate with OK. A warning
indicates that the geothermal
profile is undefined. We are
going to define it now.

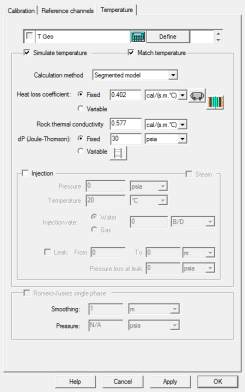

Fig. B04.13 • Interpretation settings
Definition of the geothermal profile
After the previous step, Emeraude added a Temperature match view on the screen.
 Maximize this view, with a double click on its title bar.
 Open the data browser and select the interpretation temperature in Interpretation#2.
 Click on the geothermal profile definition button (or right click and select this option in
the browser popup menu).
 Click the mouse around 833 and drag to about 847 m. While dragging, the defined
geothermal profile appears alongside the temperature channel, Fig B04.14.
