Guided Interpretation #4
•
B04 - 10/14

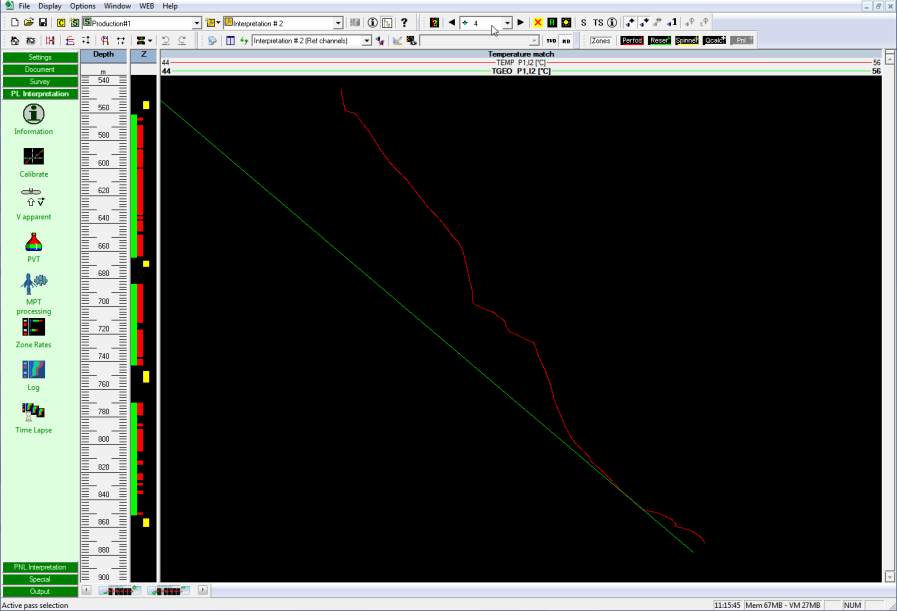

Fig. B04.14 • Defining the geothermal profile
Go back to the ‘Temperature’ tab of the ‘Information’ dialog.
Click on the calculator button to access the geothermal gradient parameters. Ensure that
the values are 833m for the reference depth, 51.65°C for the reference temperature and
0.025°C/m for the temperature gradient and enable the ‘Correction for varying deviation’,
Fig B04.15.
Fig. B04.15 • Geothermal profile parameters
Restore the match view size and the previous screen layout.
