Guided Interpretation #5 • B05 - 31/32
B05.7 • Result presentation
In addition to the rate and image views, well views can be created to show the wellbore
geometry together with the continuous holdup curves.
Inside the browser:
Select ‘Create well view’ or
.
The well view property dialog appears, Fig. B05.37:
Fig. B05.37 • Well view creation
The well view can display the wellbore geometry from a deviation or a TVD channel. The
wellbore schematic can also indicate the diameter changes. The view mode should be selected
based on the well overall trajectory. If the well is near horizontal then the default ‘Horizontal’
mode should be kept. For a near vertical well, select ‘Vertical instead’.

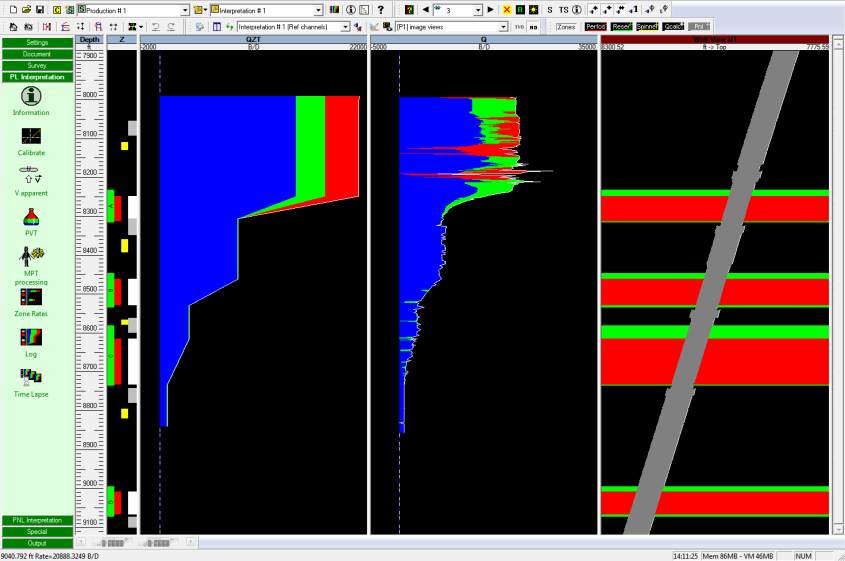

Fig. B05.38 • Well view with default settings
The following modifications can be brought to the well view:
