B06 – Guided Interpretation #6: PNL
This example gives an overview of the Emeraude PNL module.
B06.1 • Loading the data
B06.1.1 • PNL data types
The table below summarizes the data types, as well as the default mnemonics for the PNL.
Data are loaded as usual, either with the ‘Load’ option of the ‘Survey’ panel, or the ‘Load Well
Data’ option of the ‘Document’ panel.

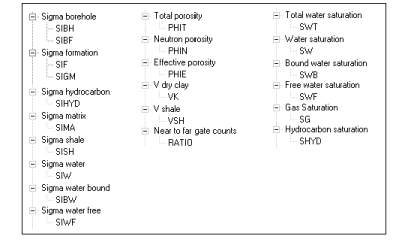

Fig. B06.1 • PNL data types
B06.1.2 • Loading
 Start Emeraude, create a new document, a new survey, and load the data from the file
B06.las. This file contains the following curves: Gamma Ray, Formation , Effective
Porosity, and Vshale.
