Guided Interpretation #6
•
B06 - 5/13
shale
Select the ‘Calculate’ button
.
The default value is initialized as the
maximum-recorded formation
.
Fig. B06.8 • Shale Sigma screen
B06.2.3 • Automatic Views and Input Channels
The boxes for the interpretation views; ‘Bulk Volume Analysis’ (BVA) and ‘Pore Volume
Analysis’ (PVA) are checked by default. Click OK. One interpretation view is created for BVA.
The PVA will be created upon the computation of the water saturation SWCalc.
Hide all the views except for the Gamma Ray and the BVA view.
Open the browser to check the content.
All channels created appear under the
‘Input’ interpretation node, see opposite.
Fig. B06.9 • Input interpretation mode
Hide the undesired channel and tile.

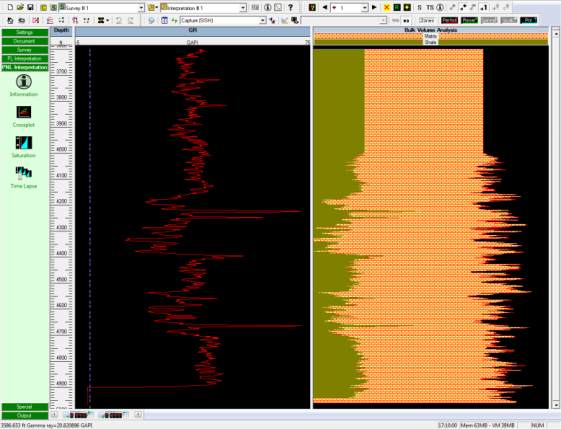

Fig. B06.10 • Gamma Ray and BVA view
