Emeraude v2.60 – Doc v2.60.01 - © KAPPA 1988-2010 Guided Interpretation #8 • B08 - 2/25
 Close the window with OK.
 From the display toolbar, press the invoke template button .
 In the tree view, below the ‘SchlumbergerTemplates.kvt’ node, expand the Full layouts
container and select ’FSI Spinner View’ (see below).
 Ensure that the automatic binding is ticked and press OK (or double click on the template).

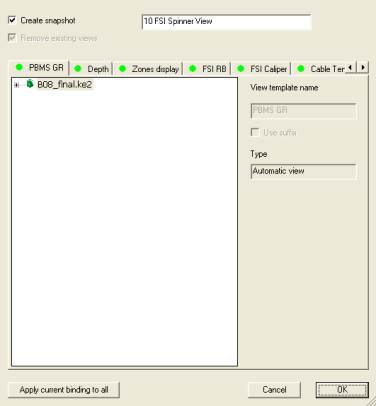

 A new window appears with a tab for each view included in this full layout template.
This window shows up because Emeraude has failed at automatically binding (at least) one of the
view templates included in the full layout template. If you scroll the tabs, you will see that the
‘TVD and DEVI’ template is marked with a red spot, identifying it as a template not bound to any
element. We will not give the template any binding, so this full layout template will be created
without the ‘TVD and DEVI’ view.
 Accept all defaults and close with OK to display the FSI Spinner View template and create
automatically the corresponding snapshot.
Fig. B08.1 • List of templates Fig. B08.2 • FSI template creation
The snapshot appears but the depth range is inadequate. This is because the shut-in passes were
logged well above the reservoir, only for calibration purposes.
 Call the Depth scale dialog to set the depth range to [1440m,1530m]. Click on Apply. Note
that you can save this depth range as the default for the zoom reset, by pressing on of the
buttons before exiting the dialog (the first one sets the default depth range to the current
display depth range, the other one sets the default depth range to that specified in the dialog).
 Click on OK to quit the dialog.
 Add the SPIN and SCVL views and Update the snapshot using the ‘store current screen’ button
.
