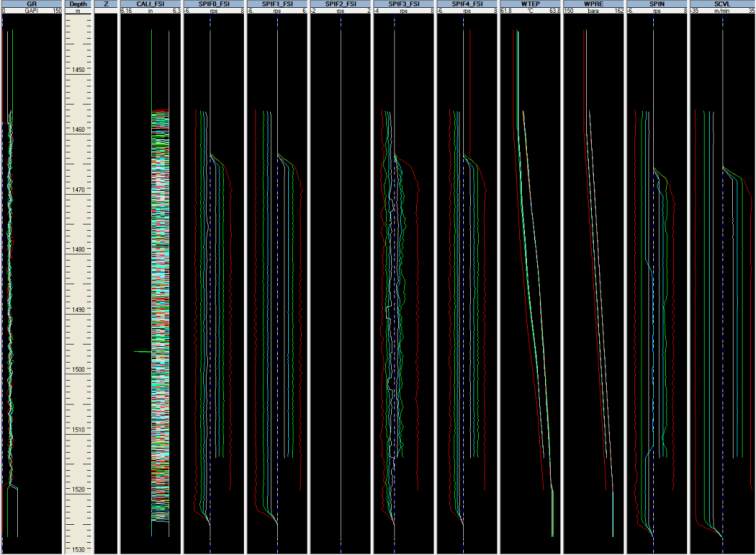

Fig. B08.3 • Snapshot with FSI spinners
It can be quickly seen that SPIF2 is dead.
B08.1.2 • Spinner Calibration
Different ways are offered to calibrate FSI spinners: either individually from in-situ measurements
or using a constant value for the slope and thresholds all over the logged interval. Here, all
spinners (FSI and conventional spinners) will be individually calibrated, based on the definition of
spinner calibration zones:
 Go to the PL Interpretation panel and click on ‘Information’ to create a new interpretation.
 Accept the default name on the first dialog.
 Choose the cable speed SCVL and keep the default spinner calibration ‘FSI individual’. Each
FSI spinner is automatically selected for calibration and cannot be unselected.
 Tick SPIN in order to calibrate the central spinner as well and validate with OK.
Fig. B08.4 • List of spinners available
