Choose to generate ‘Error channels’, ‘Average of the outputs’ and ‘Phase rates’.
Error channels are the relative errors between the raw and the reconstructed data. ‘Average of the
outputs’ generates the MPT process averages for the interpretation input. ‘Phase rates’ will
produce the reconstructed rates of the phases.

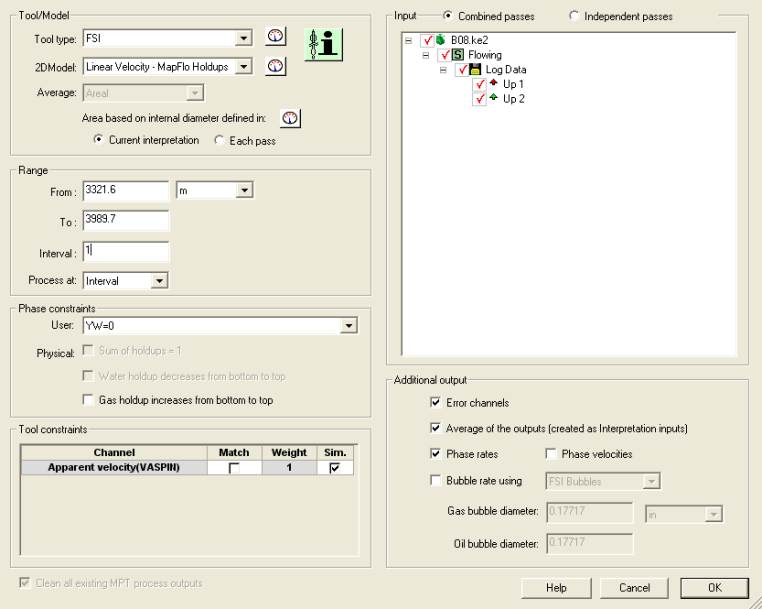

Fig. B08.22 • MPT processing dialog
When OK is given, Emeraude indicates that the process will generate more points than a
maximum, defined in ‘Settings – Interpretation – Misc’. The interval will be changed
automatically (to 3.xx m) to honor this condition. Accept with OK.
At the end of the process, a number of new channels have been created under the ‘Calculated Log
Data’ folder in the browser (under Interpretation #1 folder). The next figure gives the
details.Beware that those additional channels will obviously take some space; this is why the
generation of errors is optional. The combined process averages of the holdups, rates and mixture
velocity have been copied to the Interpretation input, as requested.
