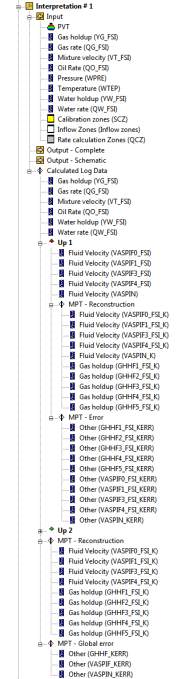

Averages out of the MPT processing
-----------------------------------------------------
Pass average values (holdups, velocities, rates)
from combined processing
------------------------------------------------------
Vapparent (generated previously)
------------------------------------------------------
Reconstructed channels with ‘_K’ suffix
-----------------------------------------------------
Errors with ‘_KERR’ suffix
------------------------------------------------------
These reconstructed channels are the 2Dmodel
prediction for a FSI tool vertical and centered (no
bearing). These channels are used for the FSI
holdup image views in Combined passes mode
-----------------------------------------------------
Overall errors on reconstructed tools. Arithmetic
averages of the pass errors on the different
probe groups (optical probes and spinners)
