The Density section is used to characterize the type of density tool used. For the ‘Gradio’, a
drop list indicates the correction that Emeraude will apply. For instance, in this case the
density channel is not corrected for deviation so we select:
 Apply deviation correction: selecting the option ‘Uncorrected pressure gradient’ in the drop-
down menu.
The default choice of correction is based on the mnemonic but should always be checked. In
this example the well is vertical so this will not have any influence on the calculations.
 Change the spinner O.D. to 3.5 in and validate with OK.

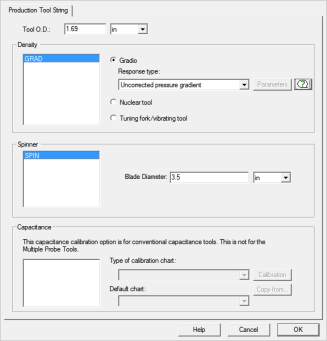

Fig. B01.16 • Tool info dialog (after input)
In this example we do not need to consider stretch or spinner reversal.
 Restore all the views (except the one for the Tension) by selecting them from the Hidden
plot list. Note that if you press the icon, next to the Hidden plot list, a dialog appears
where you can select and restore several tracks at once.
 Setup your screen as on Fig. B01.17.
