The program re-calculates the calibration for this zone, by imposing the distance between the
two intercepts equal to the sum of the thresholds, hence giving a coherent rate value for both
negative and positive lines: the two ‘arrows’ now coincide for this zone as well.
Note: by default, a linear interpolation will take place in the region between two consecutive
calibration zones. The ‘Transition’ tab allows introducing more flexibility: you can define
calibration application zones different from the calibration zones. In this case, the regions
where the linear interpolation applies can be reduced as far as a sharp transition is considered
between the calibrations.
Validate the calibration with OK.

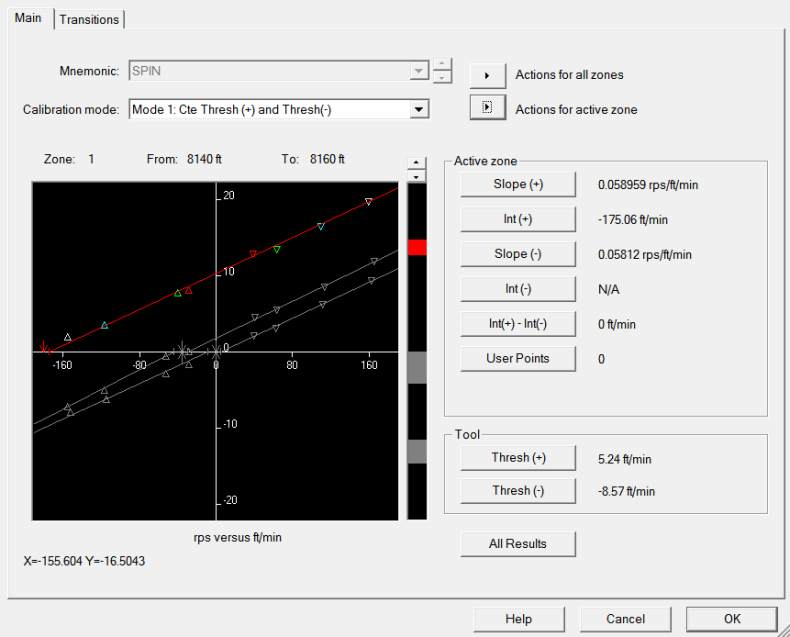

Fig. B01.31 • Final Calibration

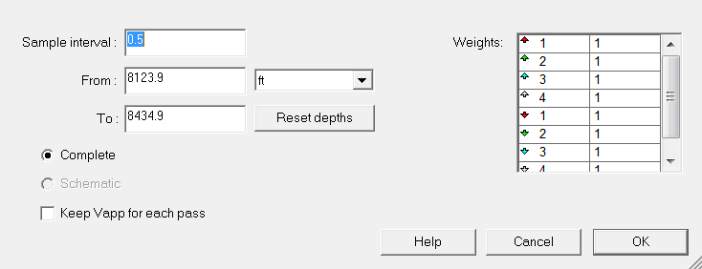

Fig. B01.32 • Apparent velocity calculation
