Emeraude v2.60 – Doc v2.60.01 - © KAPPA 1988-2010
Guided Interpretation #2
•
B02 - 11/22
B02.3.6
10B
• PVT

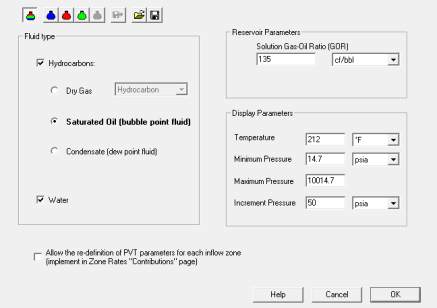

In the ‘PVT’ option define the model as saturated oil with Water using the following
parameters:
Solution GOR=135
scf/stb
.
For Water:
salinity=80000 ppm
;
For Gas:
Gravity=0.82, %N2=0, %CO2=0, %H2S=0
;
For Oil:
Gravity=39 API, Pb=638 psia@174°F
(define as a constraint
and use Match
to fit the correlation. Keep the entered GOR).

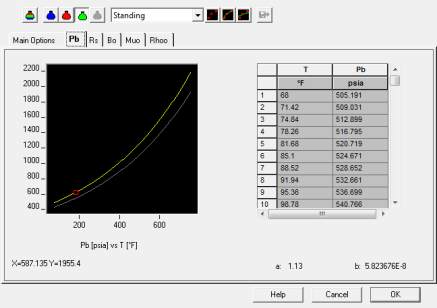

Fig. B02.13 and Fig. B02.14 • PVT
The pressure during the shut-in is well above the bubble point. Also, from the surface rates
during production#1 (Qo=1670 Stb/d and Qg=225 Mscf/d) the production GOR is 134.7
scf/stb indicating that no free gas exists.
B02.3.7
11B
• Zone Rates
Click on the ‘Qcalc’ button of the Zones toolbar
.
In the ‘Init Rate Calculation zones’ dialog accept the default (top of perforated intervals).
Resize/move the bottom deep grey zone to a lower position. To do so, click on that zone in
the Z view, then drag its handles (on the top and bottom of the zone), Fig. B02.15.
