In shut-in #1, the DPDZ was checked against the PVT data. It was decided to offset the
channel by –0.027 g/cc (this can be viewed inside the data browser).
The same shift must be applied here (y -> a.y + b inside the data browser).

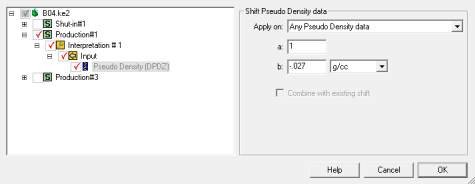

Fig B04.3 • Shifting the density channel
Calibration / Vapparent
Spinner calibration zones were already defined.
Click on the ‘Calibrate’ icon to view the calibration. Accept all defaults and generate
VAFLOW.
Hide the cable speed, density (DPDZ), velocity (VAFLOW) and spinner views. Tile.

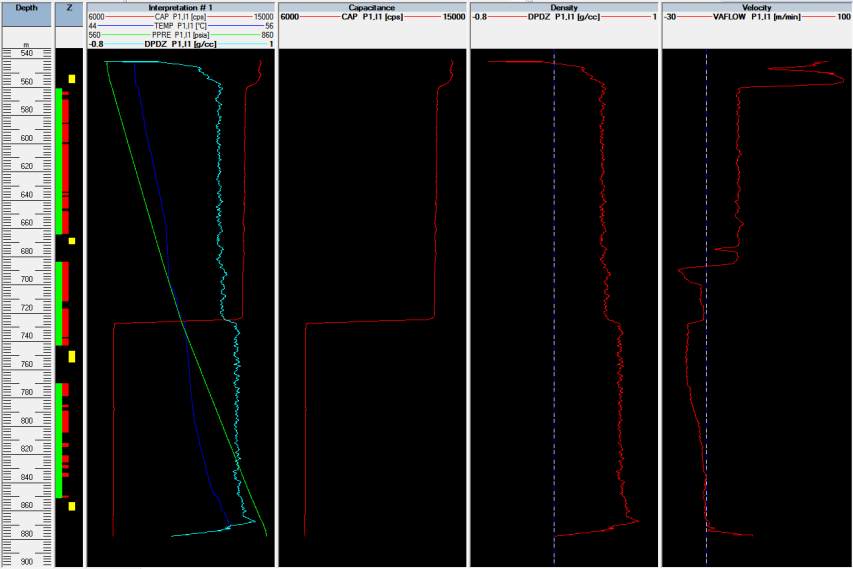

Fig B04.4 • Apparent velocity created
