Fig. B05.2 • Log data loaded
Click the
option next to the hidden plot list to access the dialog below, Fig. B05.3.
Use ‘<<’ to move all views to the left.
Using the ‘Ctrl’ key for multiple selections, highlight on the left part: Depth, Zones
display, SCVL, C1C2, SPIN, GR, WPRE, WTEP. Move the selected views to the right
with ‘>’. Using the Up and Down arrows, you can set a specific ordering for the views
to be displayed. Validate with OK.

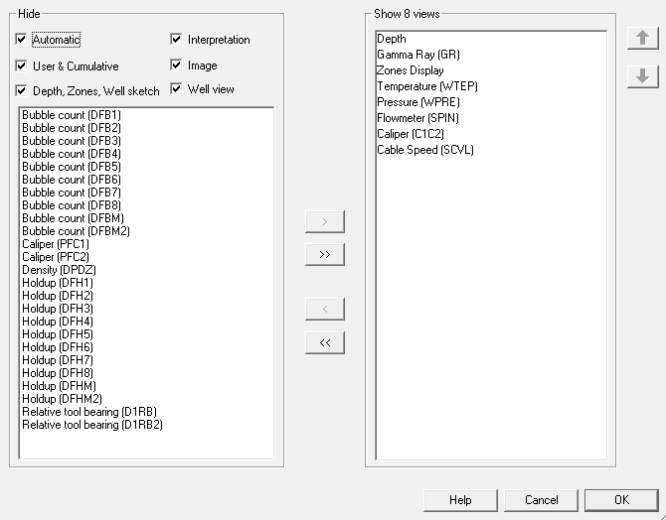

Fig. B05.3
• Show/hide views
