Updating Linked Data in KAPPA-Workstation
There are two ways a linked gauge data may be updated in the KAPPA-Workstation (K-W) file:
Using the Update from Server option in Edit/QAQC: this is the simplest and the quickest way.
Dragging and dropping a gauge on an existing gauge in K-W and appending/replacing the gauge.
Inside the K-W document, go to Edit/QAQC tab.
Click on Update from Server,

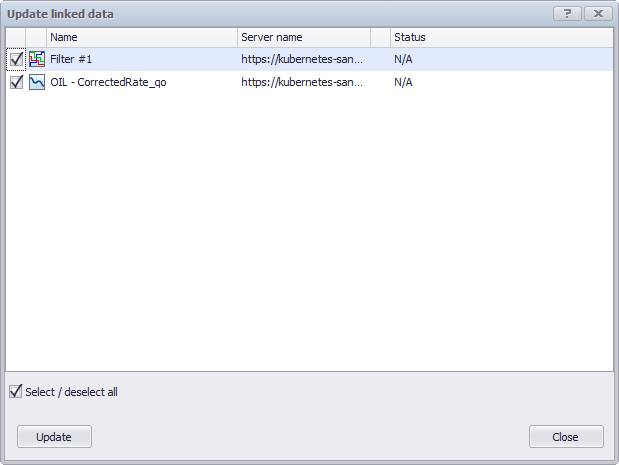

,in the ribbon at the top.The dialog will list all the linked gauges in the K-W document:
Select the gauges to update.
Click on Update.

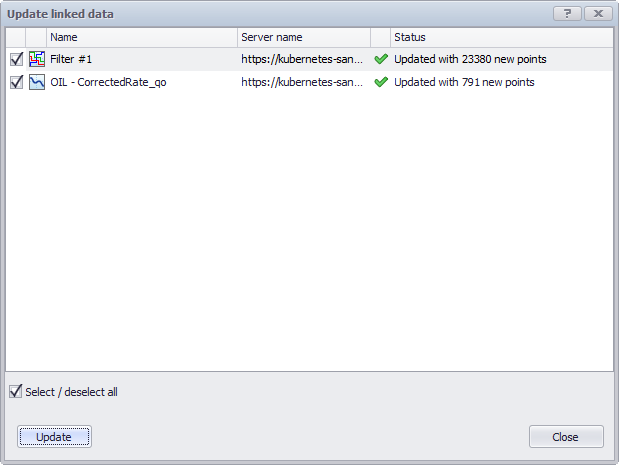

If any new data, past the existing gauge data in the K-W document is found on the server, it will be appended to the gauge:
