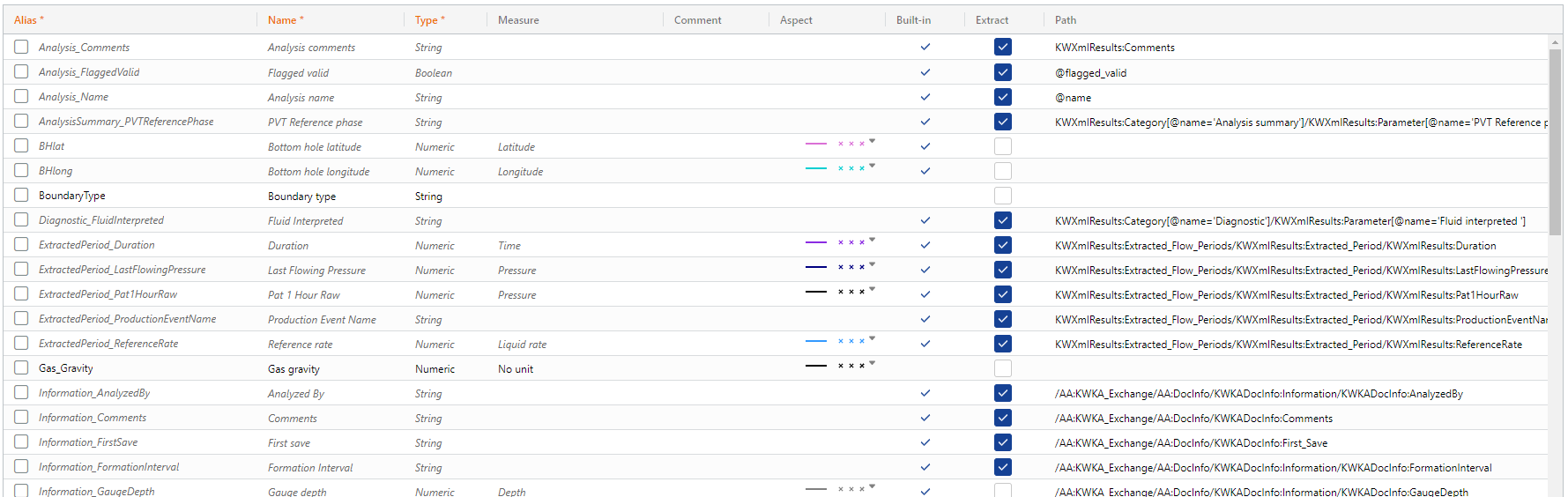

Customizing Well Properties Catalog
The Global K-A well properties catalog can be accessed in the Model page under Automation Mode. Changes made here will not affect existing fields, only those created onwards.
The field well properties catalog can be accessed during field creation by toggling to the Well properties tab in the field creation dialog (see Creating a New Field). Alternatively, it can be customized after a field is created by selecting the field node in the field hierarchy and toggling to the Well properties tab.
 |
Click on Add,
, above the table.Define the well property Alias, Name and Type.
For Numeric property types, define the property Measure.
For Numeric and Event property types, the channel Aspect may also be defined.
Click on Save,
, above the table.
All steps are shown in the .gif below.

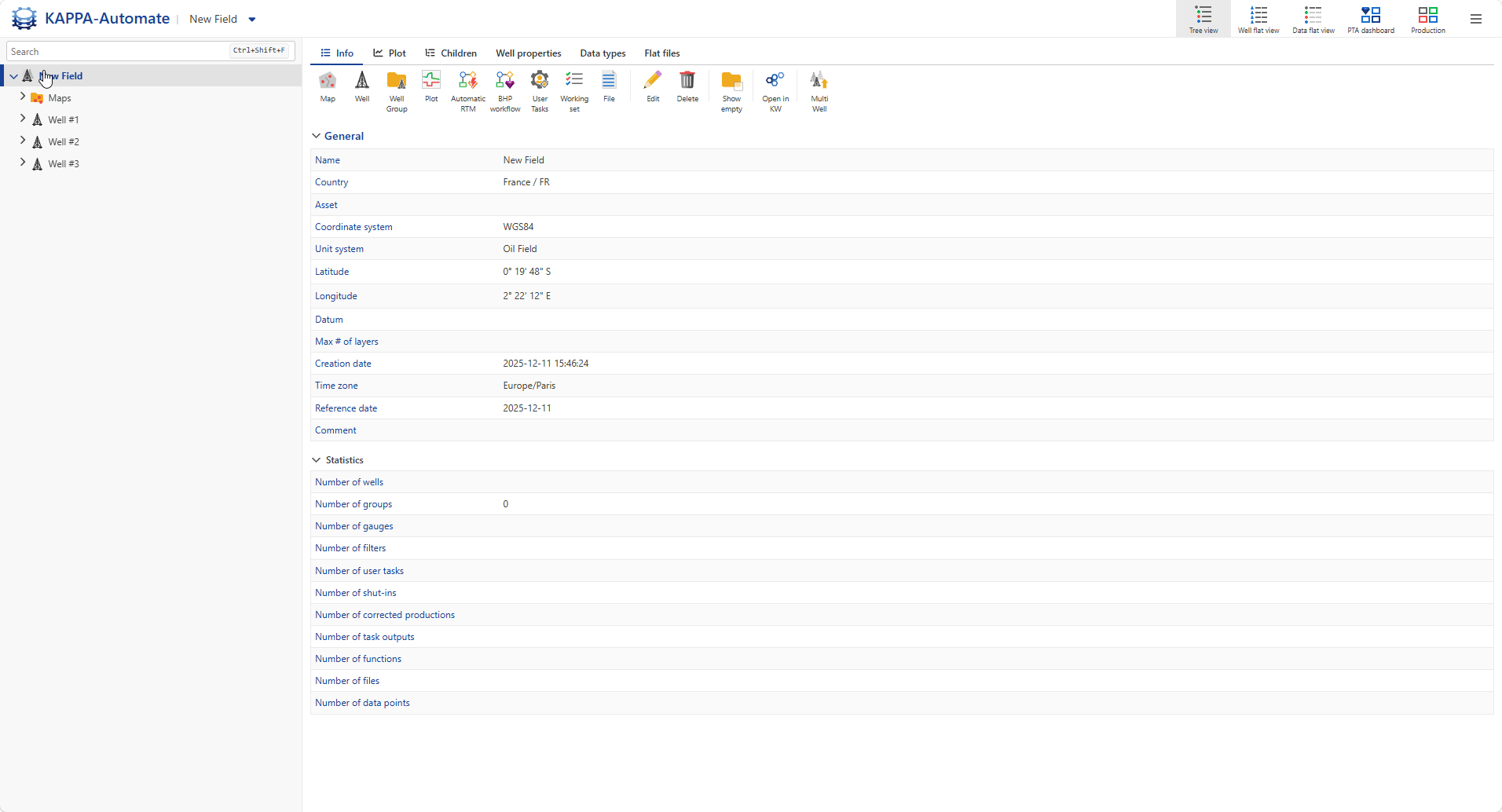

To define a well property so it can be automatically extracted from a K-W document:
Enable the Extract flag.
In the Path field, enter the full XML path to the property.
Note
The path here refers to the results_SI.xml in the K-W document archive.
All steps are shown in the .gif below.

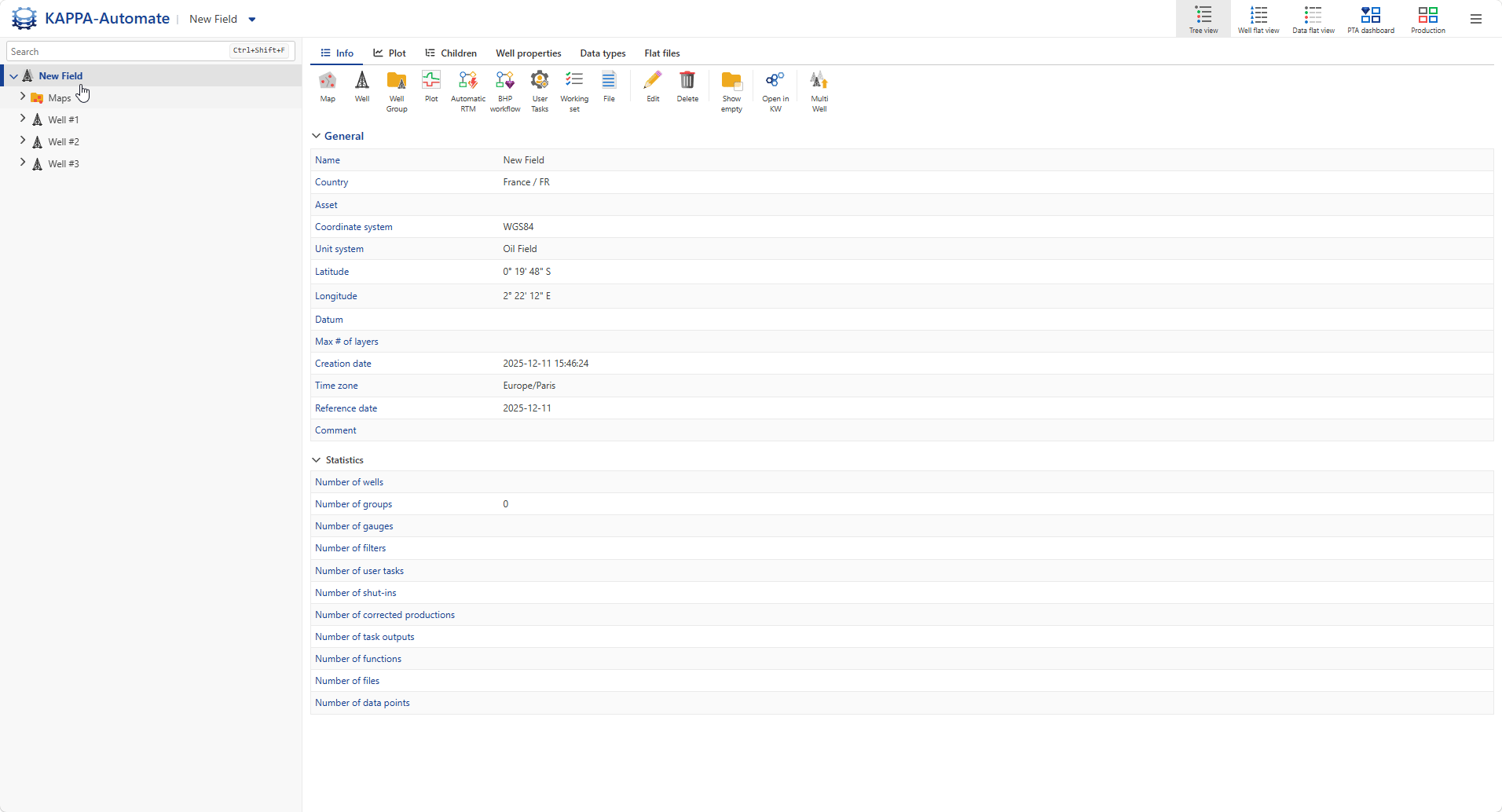

In the well properties table, select the user defined well property/properties to delete.
Click on Remove,
, above the table.Note
Built-in properties cannot be deleted.
All steps are shown in the .gif below.
