Result Replication into Master Well Properties
Analysis results from KAPPA-Workstation (K-W) documents stored under any iPTA and iRTA can be replicated to the Master well properties container - the main use case being to replicate properties from selective analyses as Valid properties for the well. Well properties results can be plotted or used in further processes or computations.
Like Extraction, Replication of results can be configured as desired from the XML file contained in the K-W archives (see Well Properties and Customizing Well Properties Catalog for more details).
To replicate results from a K-W document inside a given workflow:
Select the KW document under a well in the field hierarchy.
Under the Info or Plot tab, click on Replicate Results,

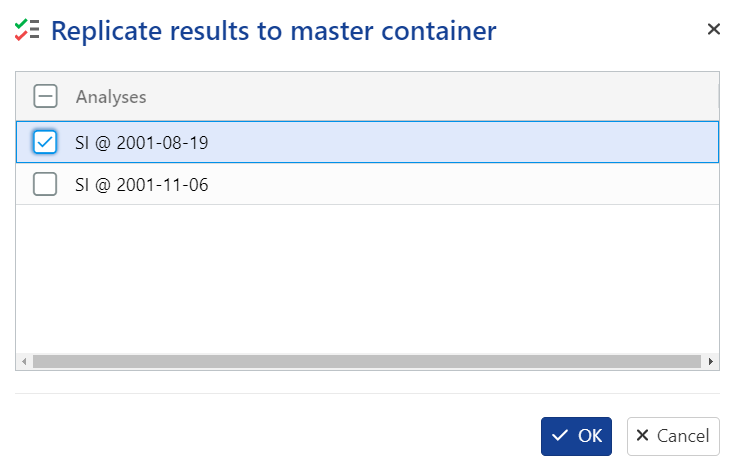

.Select the analysis from which to replicate the results:
